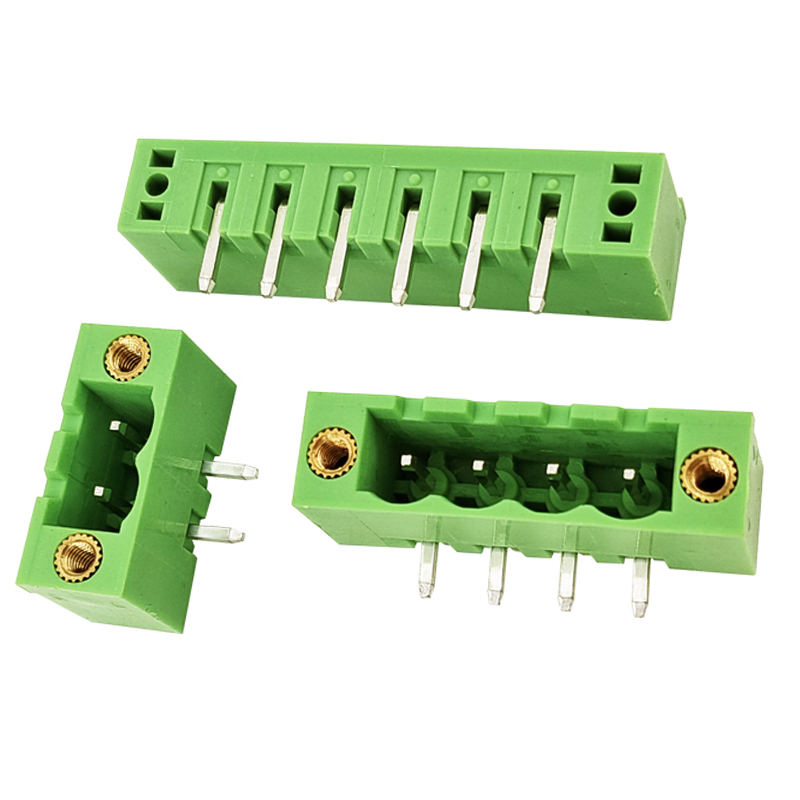

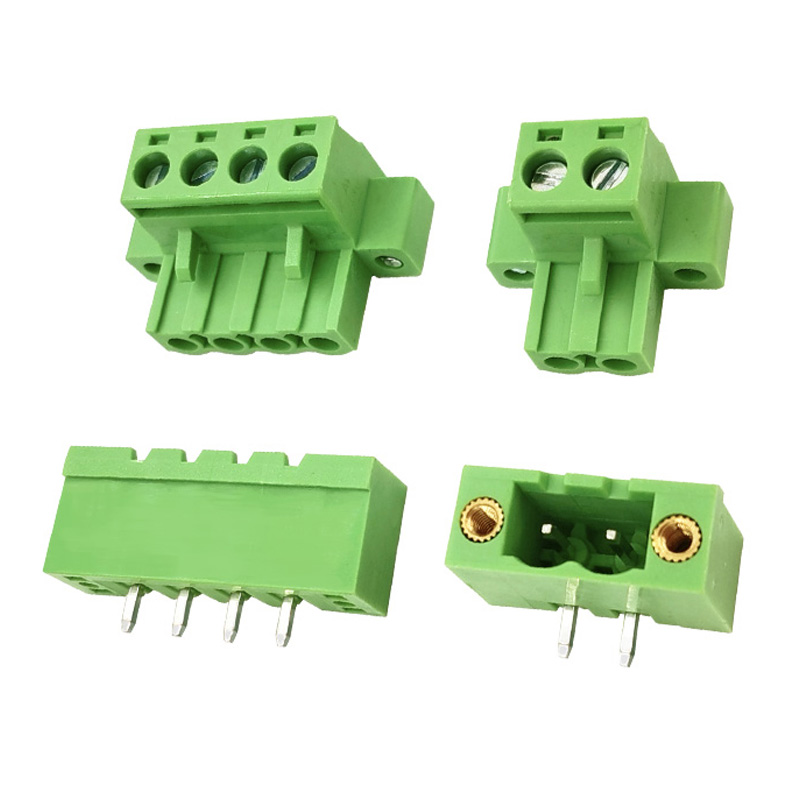

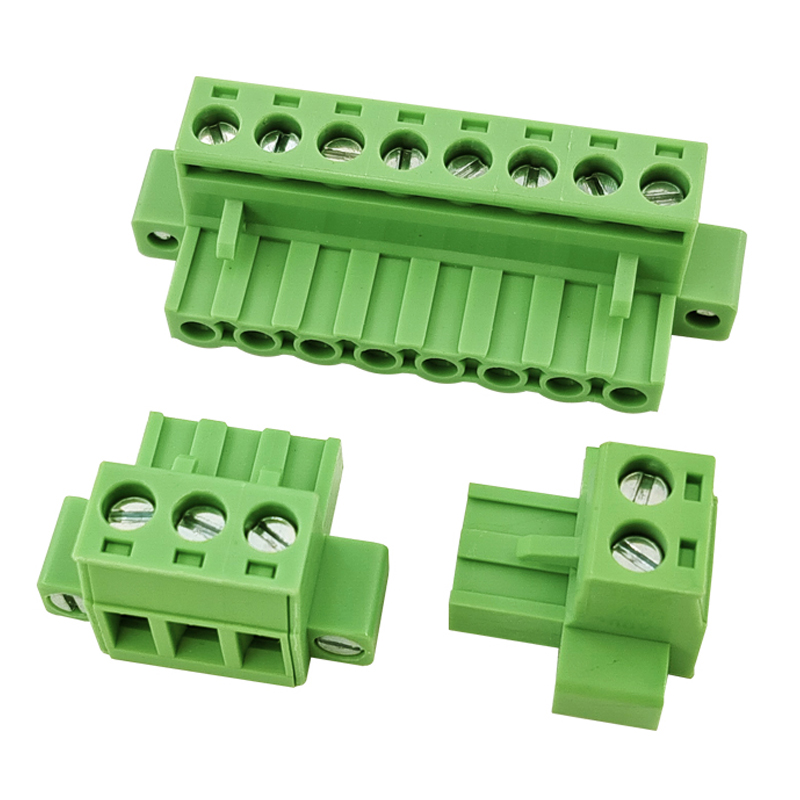

5.08mm pitch terminal block with locking flanges

XK2EDGKM+VM/RM-5.08MM Wire range:24-12AWG(2.5MM²) 5.08mm pitch terminal block with locking flanges Environmental certification Insulating flame retardant Quality assurance                                                                                                                                                                                                                                             Basic Product Information Rated voltage 300V Rated current 10A Withstanding voltage 1600V/1Min Wire range 24-12AWG(2.5MM²) Rated impulse voltage 4.0KV Temp range -40℃~+105℃ Strip length 7-8MM Screw/Torque M2.5/0.4N.M Housing PA66.UL94V-0 Pin header Brass,Tin plated Wire cage Brass,Ni plated Contact Phosphor Bronze,Ni plated Screw M2.5,Steel,Zinc plated Pitch 5.08MM Poles 2-24P Product Drawings Genuine Material Packaging & Shipping The package of  XINKE has the  the unity of inner and outer packing. Also special cartons ca…
