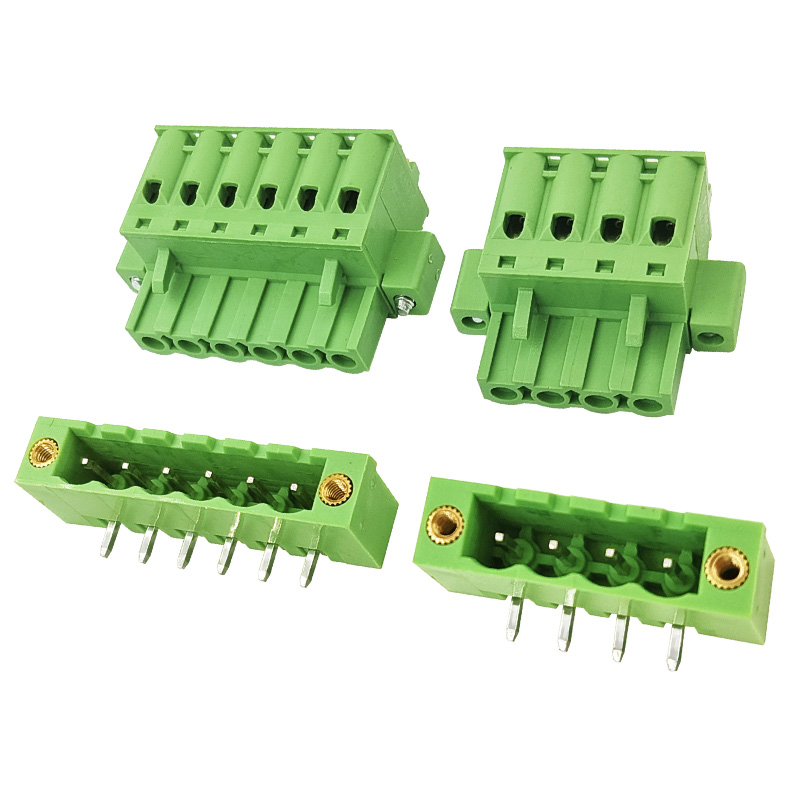

90 Degree Right Angle Spring terminal block with locking flanges pitch 5.08MM

XK2EDGKDM+RM-5.08MM Wire range:24-12AWG(2.5MM²) 90 Degree Right Angle Spring terminal block with locking flanges pitch 5.08MM Environmental certification Insulating flame retardant Quality assurance Basic Product Information Rated voltage 300V Rated current 10A Withstanding voltage 1600V/1Min Wire range 24-12AWG(2.5MM²) Rated impulse voltage 4.0KV Temp range -40℃~+105℃ Strip length 10-11MM Screw/Torque - Housing PA66.UL94V-0 Contact Phosphor Bronze,Ni plated Reed Stainless steel Screw M2.5,Steel,Zinc plated Pin header Brass , Tin plated Pitch 5.08MM Poles 2-24P Product Drawings Genuine Material Packaging & Shipping The package of  XINKE has the  the unity of inner and outer packing. Also special cartons can be made for the customer if have any requirements. Manufactory Profile Ten years casting experience, professional production of high quality terminal block.   see more about us:  www.cxxinke.com Our Services…
