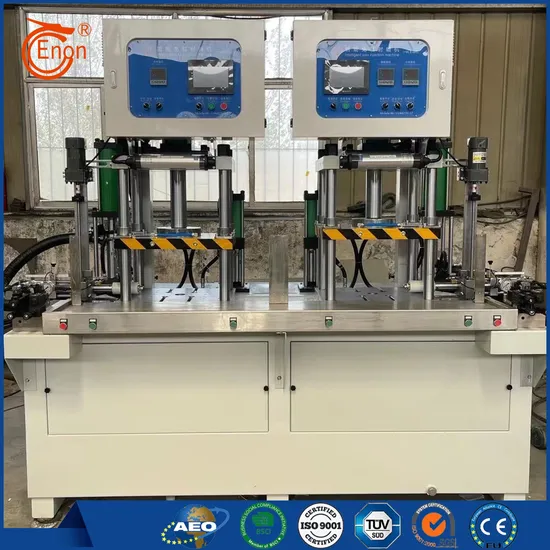

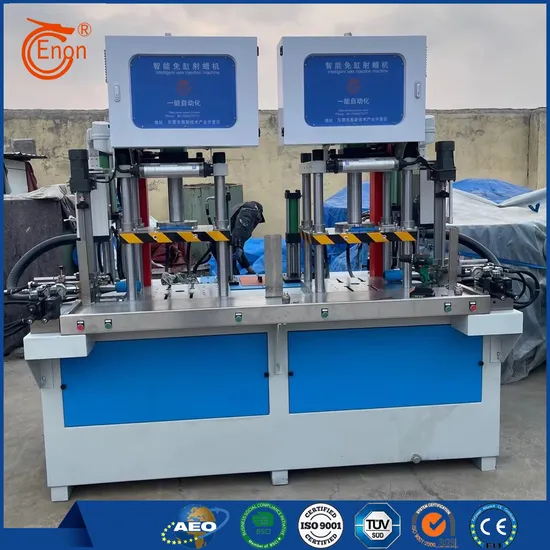

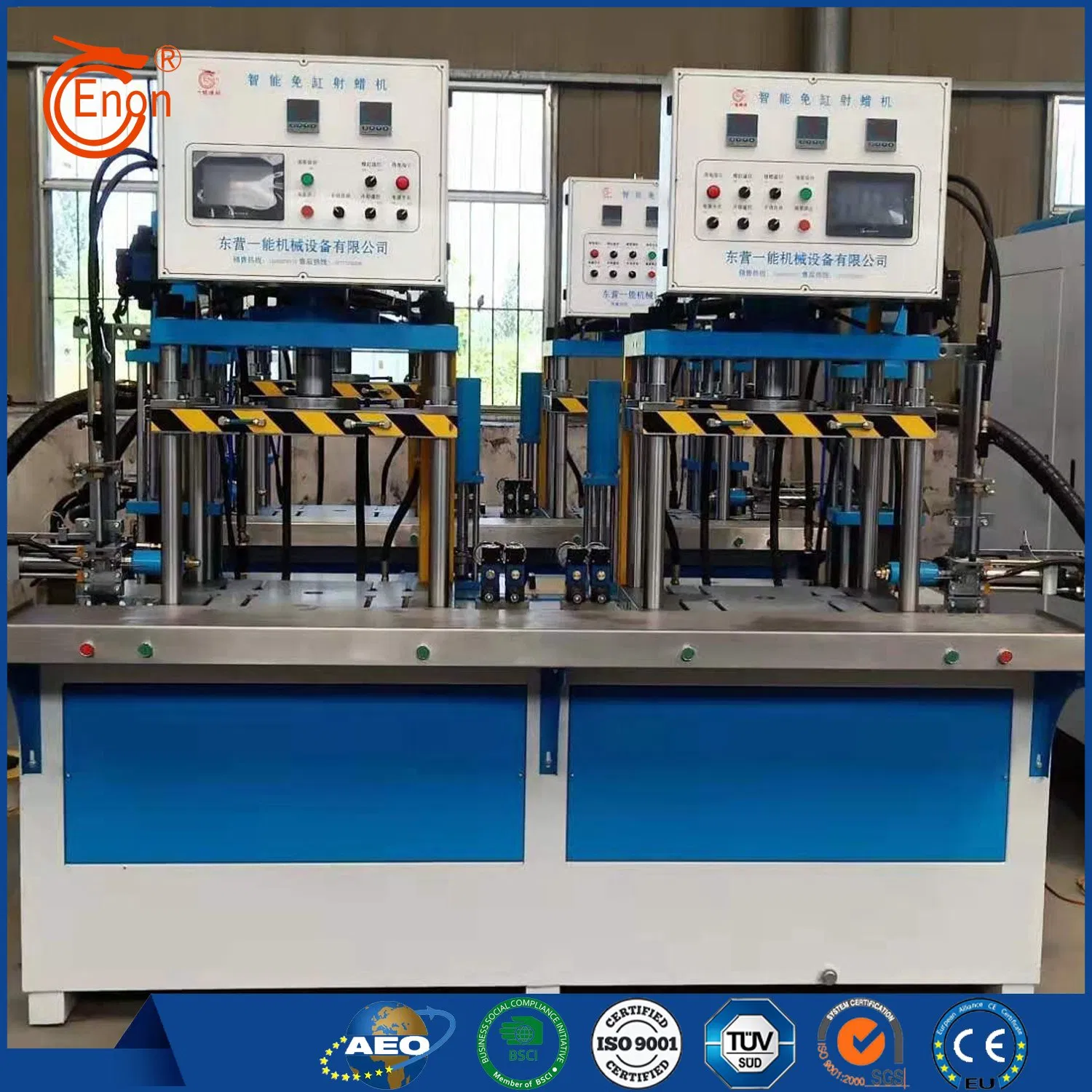

Wax Injection Machine for Precision Casting

  1.Configuration instructions 1. Electrical components: Chint , PLC programmer for Taiwan Delta series, close switch series components for Omron, Japan. 2.Hydraulic system: the hydraulic valve is Taiwan oil research; the hydraulic motor is Taiwan Group; the hydraulic pump is Taiwan Gree, the circulating motor pump is Taiwan Weiliang; the drum-cylinder seal is Japan NOK; the oil cylinder is Jinan Yuci Branch. 3.The main engine is made of δ 20 hot plate welding, the inner layer of the wax box is 304 stainless steel plate welding, the wax cooling system is made of three pipes, and the wax pipe is welded by pickling. 2.Technical parameter Explain Unit YN-SMZ-10LB-Y Clamping force (max) T 10 Mold use space(L×W×H) mm 460×430×500 Up and down the mold trip mm 400 Minimum height of the mold mm 100 hydraulic oil tank L 150 PLC+Touch screen YES/NO YES Maximum wax injection (wax cylinder) L 3.3 Maximum injection pressure MPa 0~10 (Hydraulic variable pressure…
