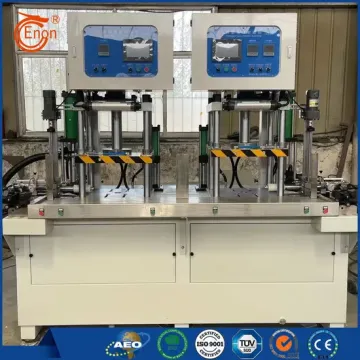

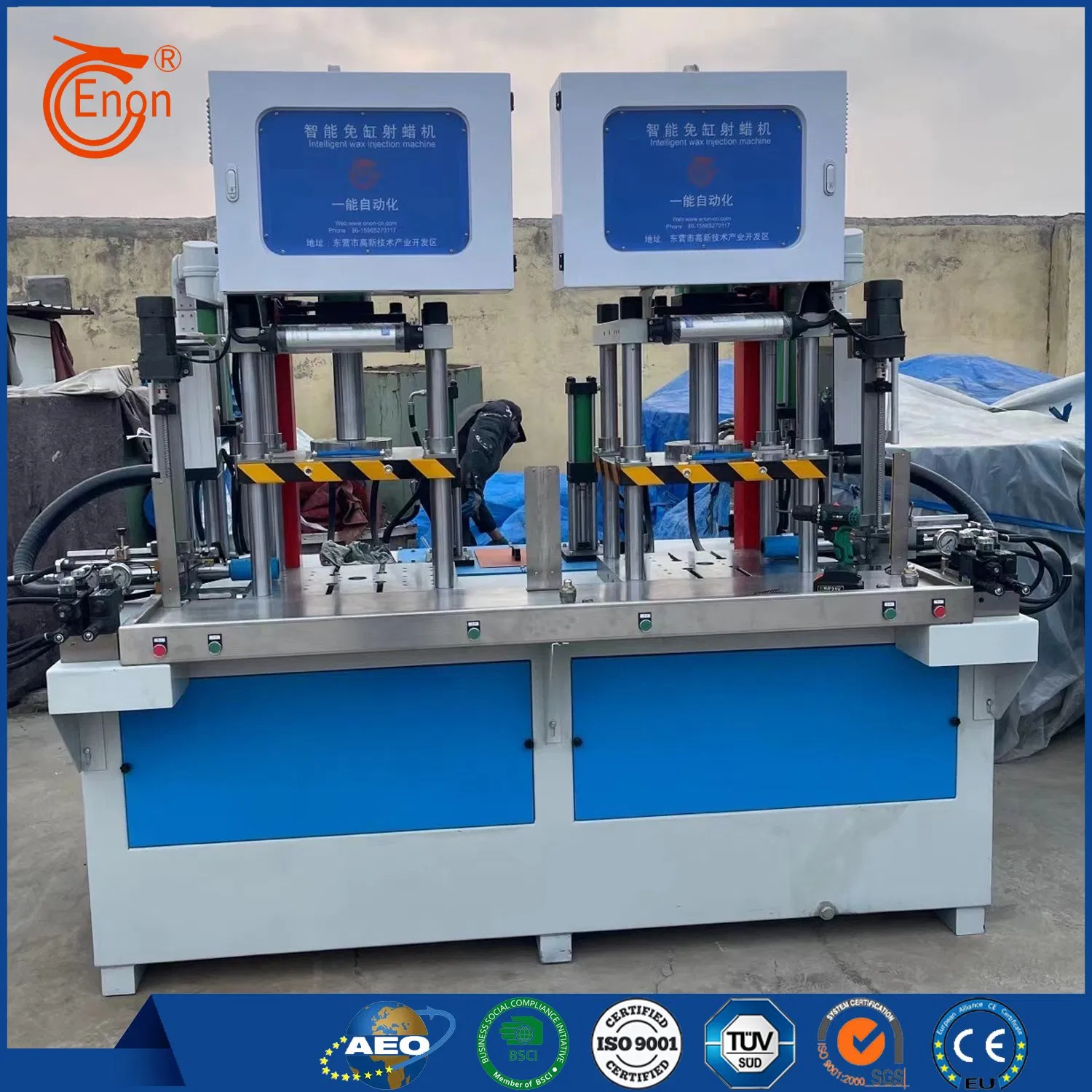

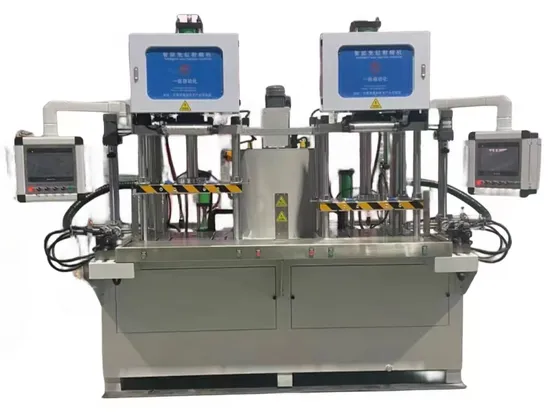

Double Column Free Cylinder Wax Injection Machine

1.Technical parameter   Explain Unit YN-SMZ-16LB-Y Clamping force (max) T 16 Mold use space(L×W×H) mm 520×570×600 Up and down the mold trip mm 600 Minimum height of the mold mm 100 Mold use form   Can be up and down fixed automatic mode, hand push single mode or double mode 2,Configuration instructions 1. Dual-Station Independent Control: The two injection molding stations can operate completely independently, with separate temperature settings and adjustments to meet the differentiated temperature control requirements of different molds. 2. Intelligent Mold Cooling System: Both the upper and lower mold plates feature built-in chilled water circulation channels, which automatically circulate a cooling medium (such as chilled water) to quickly and evenly remove heat from the mold, ensuring precise mold temperature control. 3. Highly Compatible Mold Mounting Design: The equipment features T-slots machined in the balancing direction of the fixed and movable plates, a…
