BS 6004 Flat Twin and Earth Cable

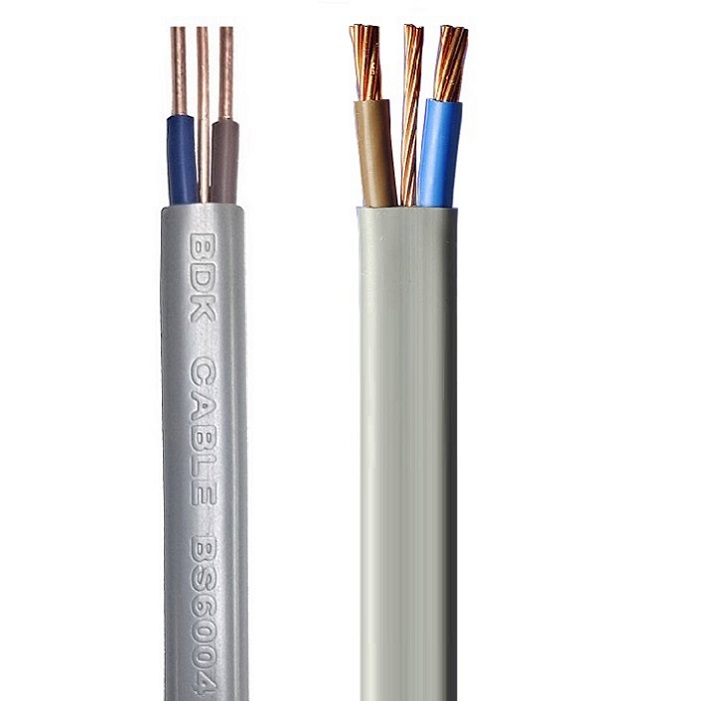

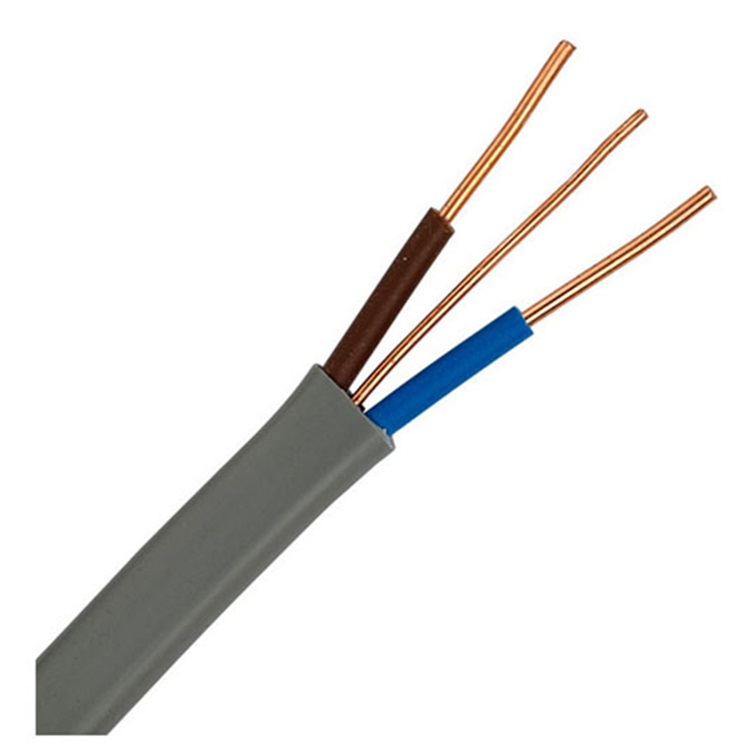

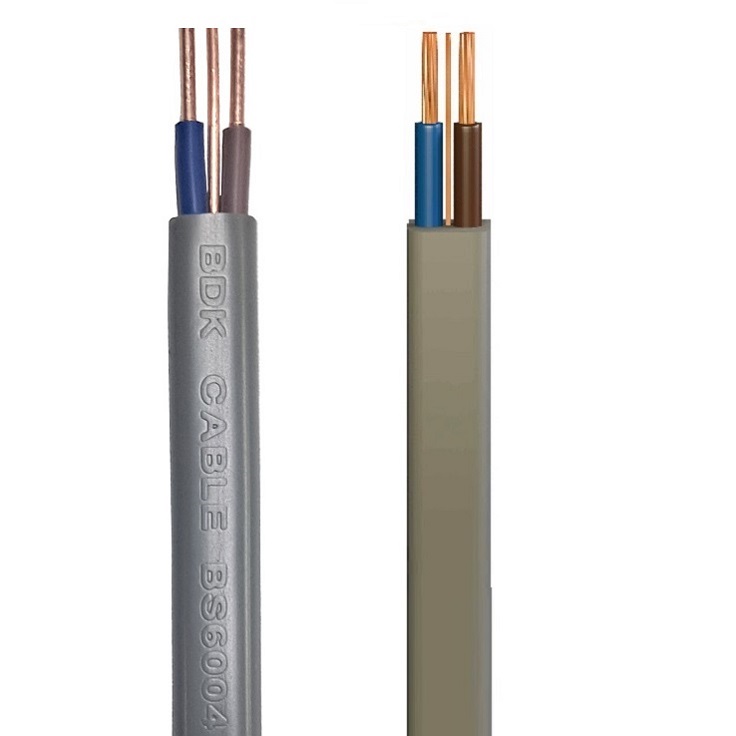

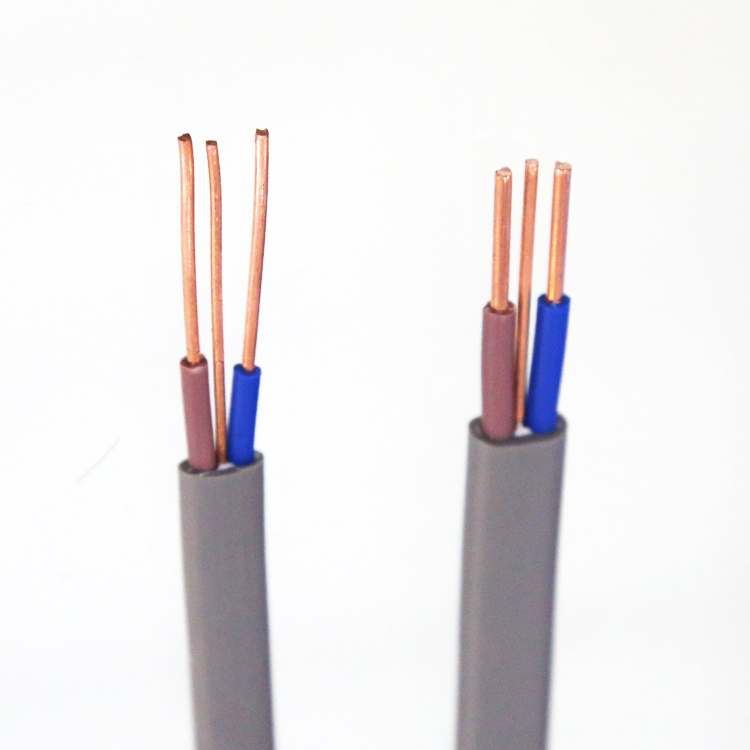

BS 6004 Flat Twin and Earth Cable 1. Appearance Features The BS 6004 Flat Twin and Earth Cable features a flat design, facilitating installation along walls, floors, or cable trays, saving space and increasing installation efficiency. Its sheath is primarily gray, but white or other colors are also available. The surface is smooth and untextured, with clear markings (such as brand, specifications, and certification marks). The cable cross-section is a flat rectangle, containing two insulated conductors (live wire and neutral wire) and one bare copper grounding wire. The three cores are arranged in parallel and encased in a PVC sheath. 2. Material Characteristics Conductors: The live and neutral wires use Category 1 solid copper wire (cross-sectional area ≤ 2.5mm²) or Category 2 stranded bare copper wire (cross-sectional area ≥ 4mm²) to ensure conductivity and mechanical strength. The grounding wire is a bare copper conductor with no insulation layer, directly contacting the sheath to…
