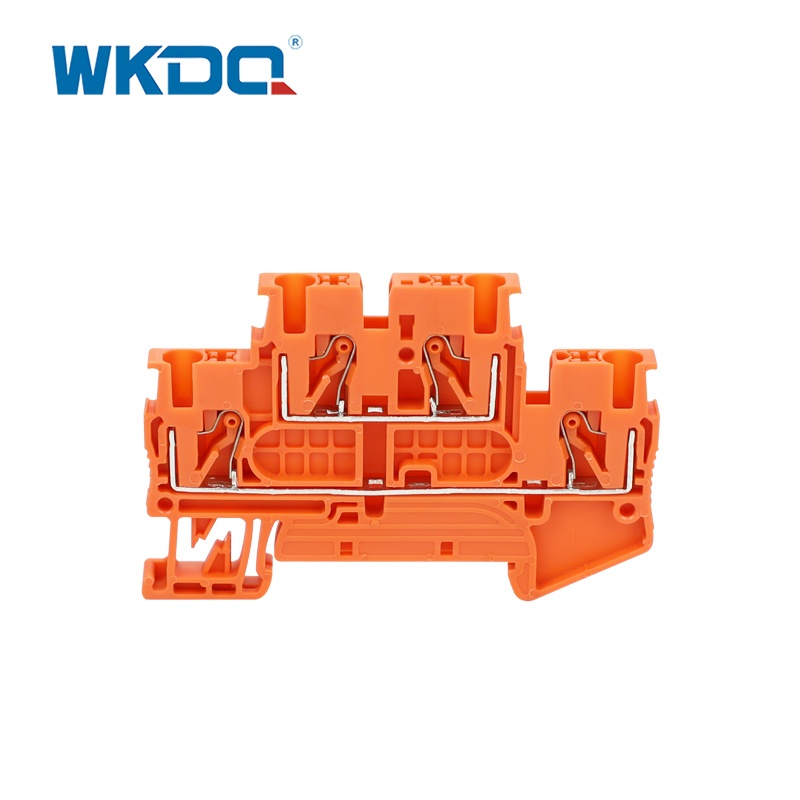

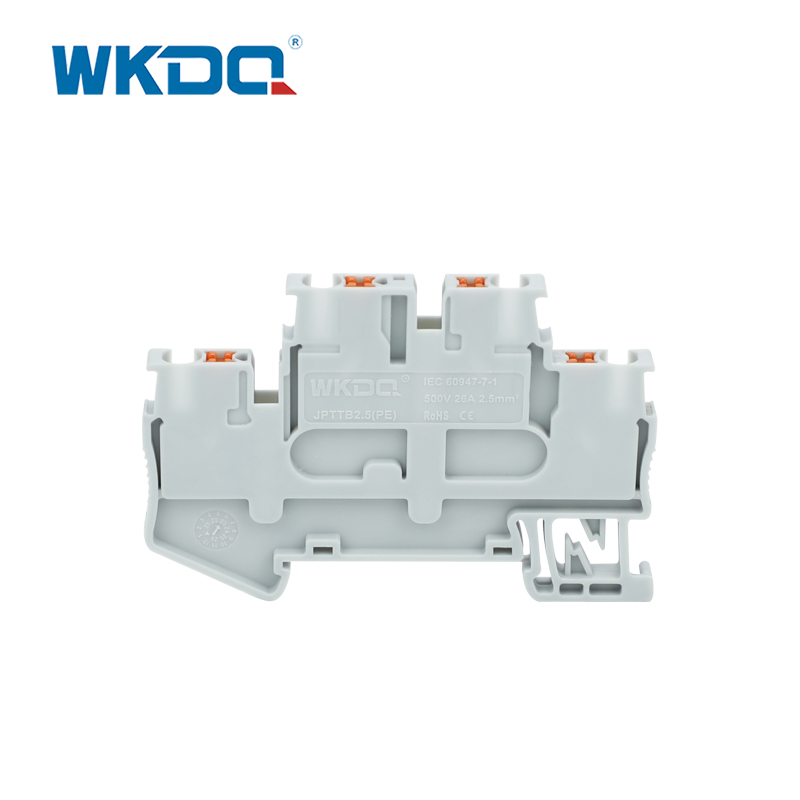

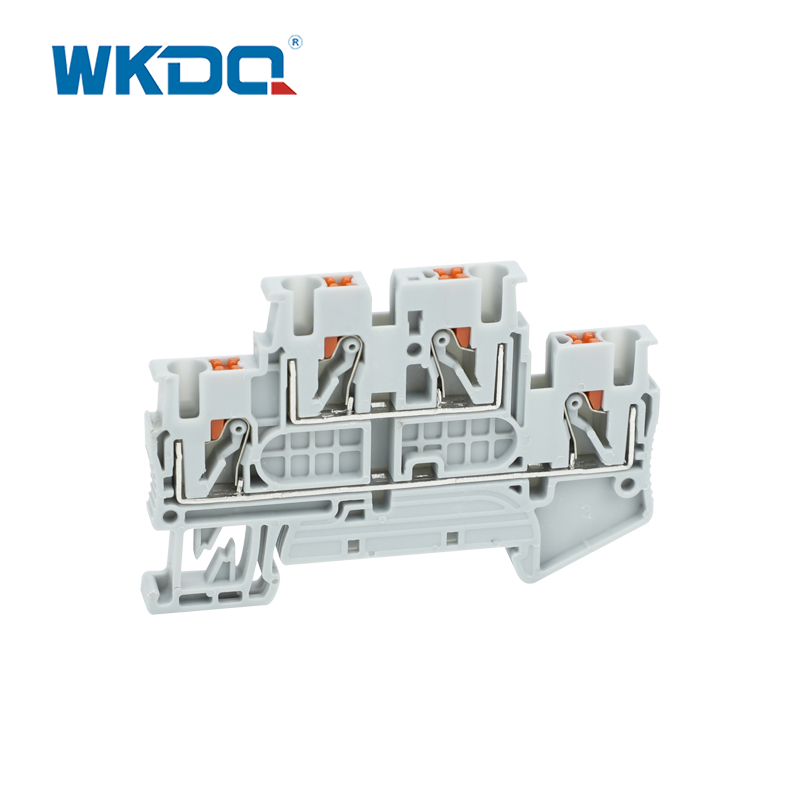

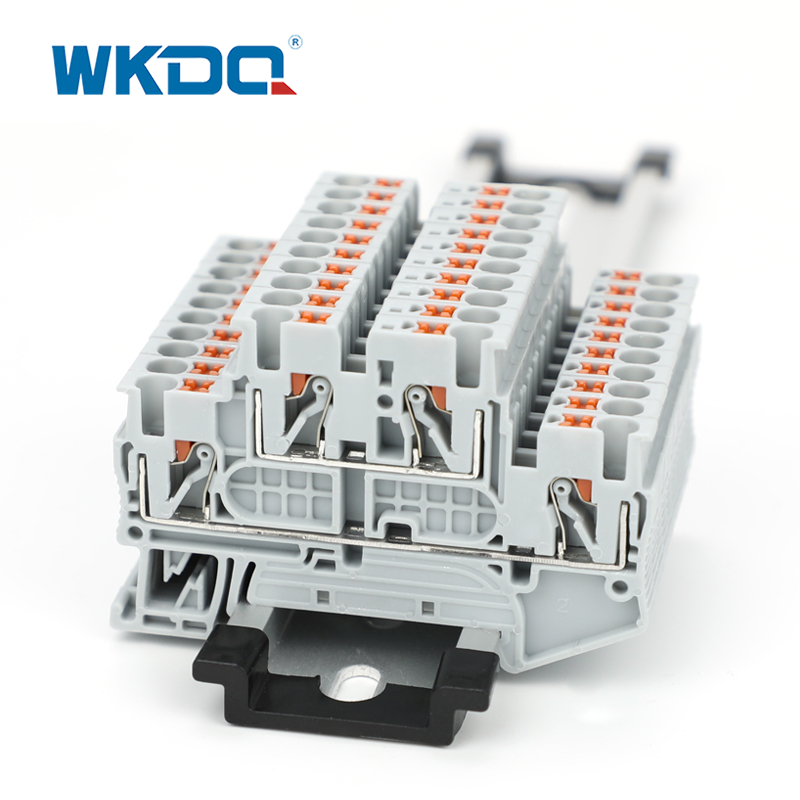

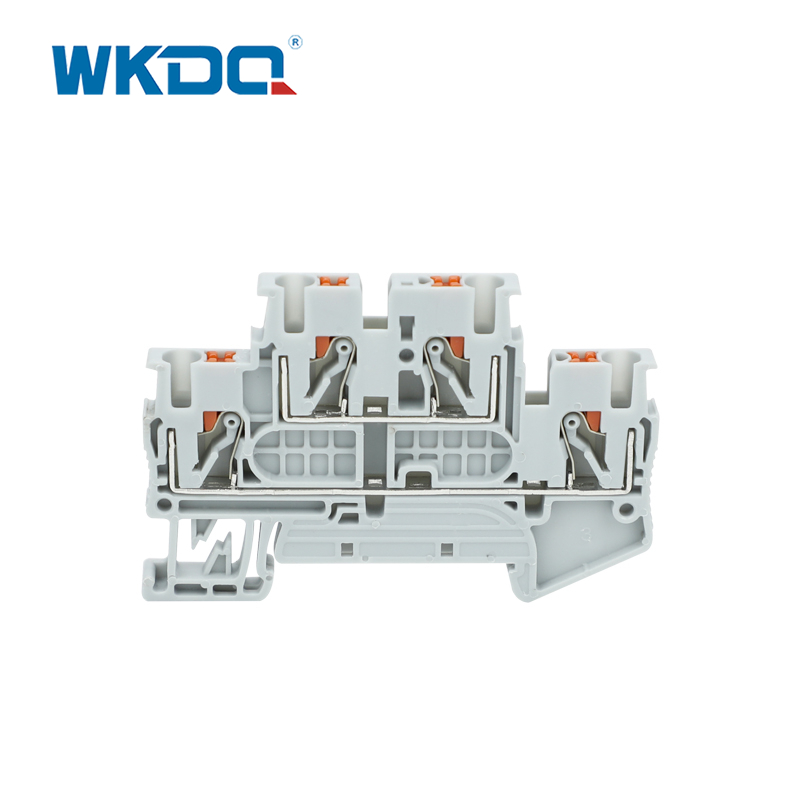

Double Deck Terminal Block

The metal surface is protected by lead-free electroplated zinc or tin plating. As a result, the temperature of the electrical conductor remains cool. The connection design on the front allows the screwdriver and the wire to enter from the same direction, allowing easy wiring in a narrow space. Compact design save the space and money Double deck Multi Terminal blocks with Color-coded buttons, safe wiring and operation This button allows any type of tool to be used to easily release the conductor without directly touching live parts. Technical Parameters Model No. JPTTB 2.5 Color Grey,Blue, other color can be customized Length/Height/Wide (mm) 68/47.5/5.2 Connection method Push-in connection Material Flame resistant Nylon PA66 V0 Rated Voltage/Current 500V/22A Cross section, solid/soft Cable 0.14-4mm²/0.14-2.5mm² Conductor Size 26-12AWG Mounting Type DIN Rail NS 35 Standard IEC 60947-7-1 LOGO WonkeDQ,  LOGO can be cust…
