Folding Door Track Roller Hinge

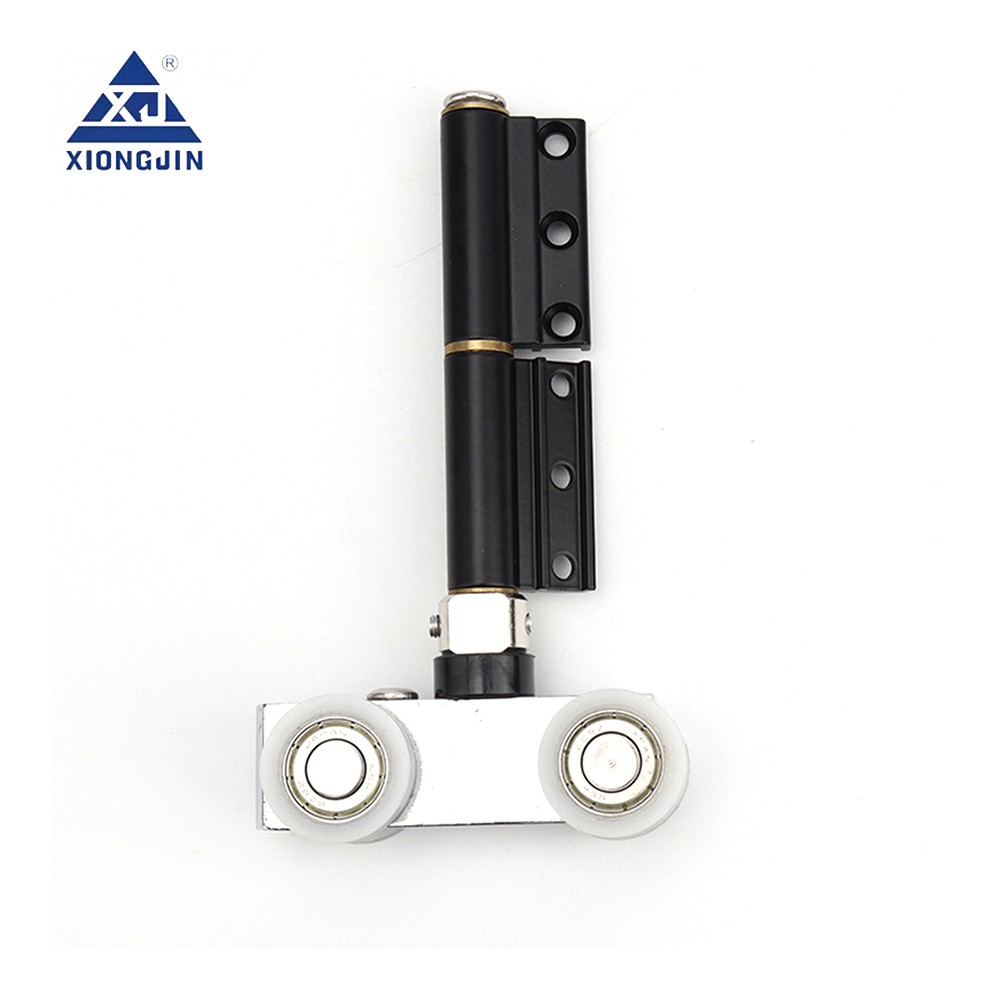

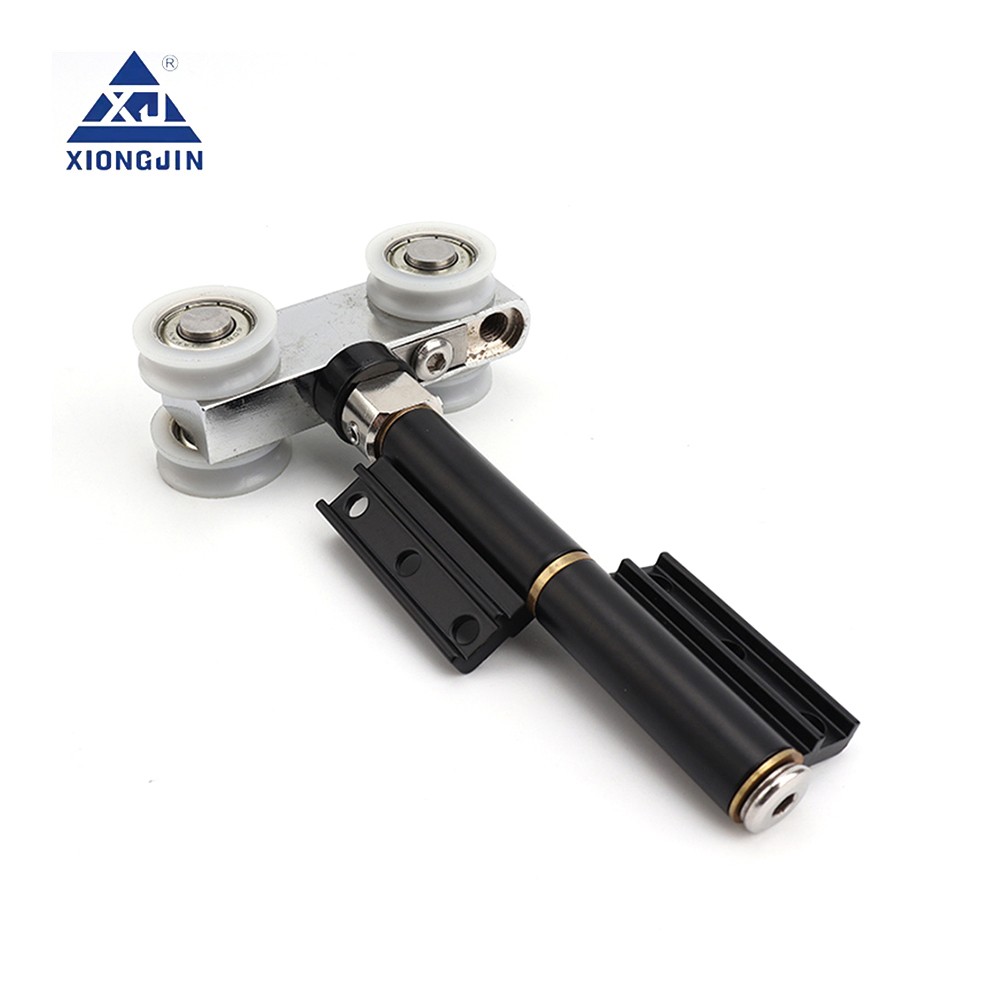

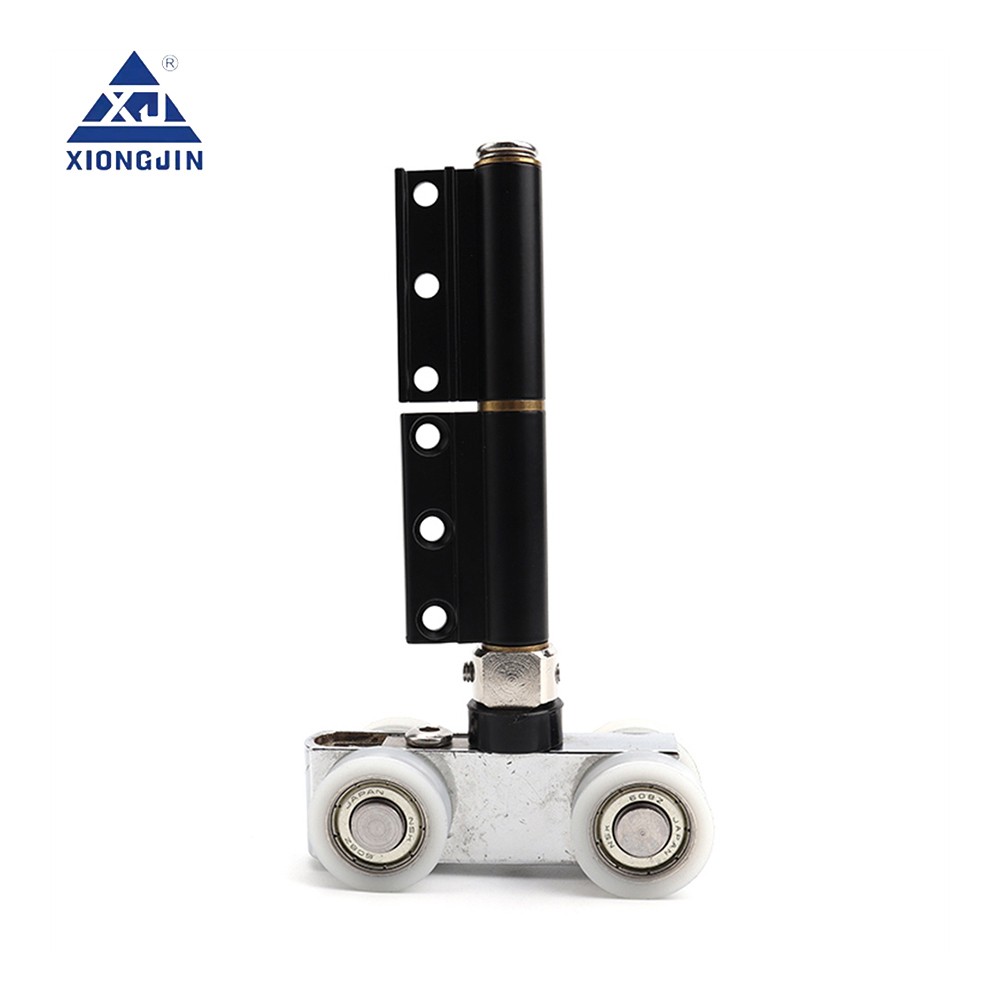

Folding Door Track Roller Hinge — Folding Door Track Roller Hinge combines a vertical hinge body with twin guide rollers that enter a compatible track channel. The hinge line controls how adjacent leaves fold, while the rollers keep the moving connection related to the track. This makes leaf stack geometry and vertical channel preparation more important than a simple comparison with a conventional butt hinge. Set the Fold Line Draw adjacent door leaves in the closed and stacked positions. Mark the hinge axis, panel thickness and gap needed between the profiles. The folding-door track hinges should be positioned so the connected leaves rotate without their edges or seals colliding during the fold. Twin Rollers in the Guide Channel Measure track mouth, internal running width, wheel diameter clearance and the path used to insert the rollers. Confirm that both wheels contact the intended surfaces. The twin-guide roller assembly is a guided connection; forcing it into a narrow channel…
