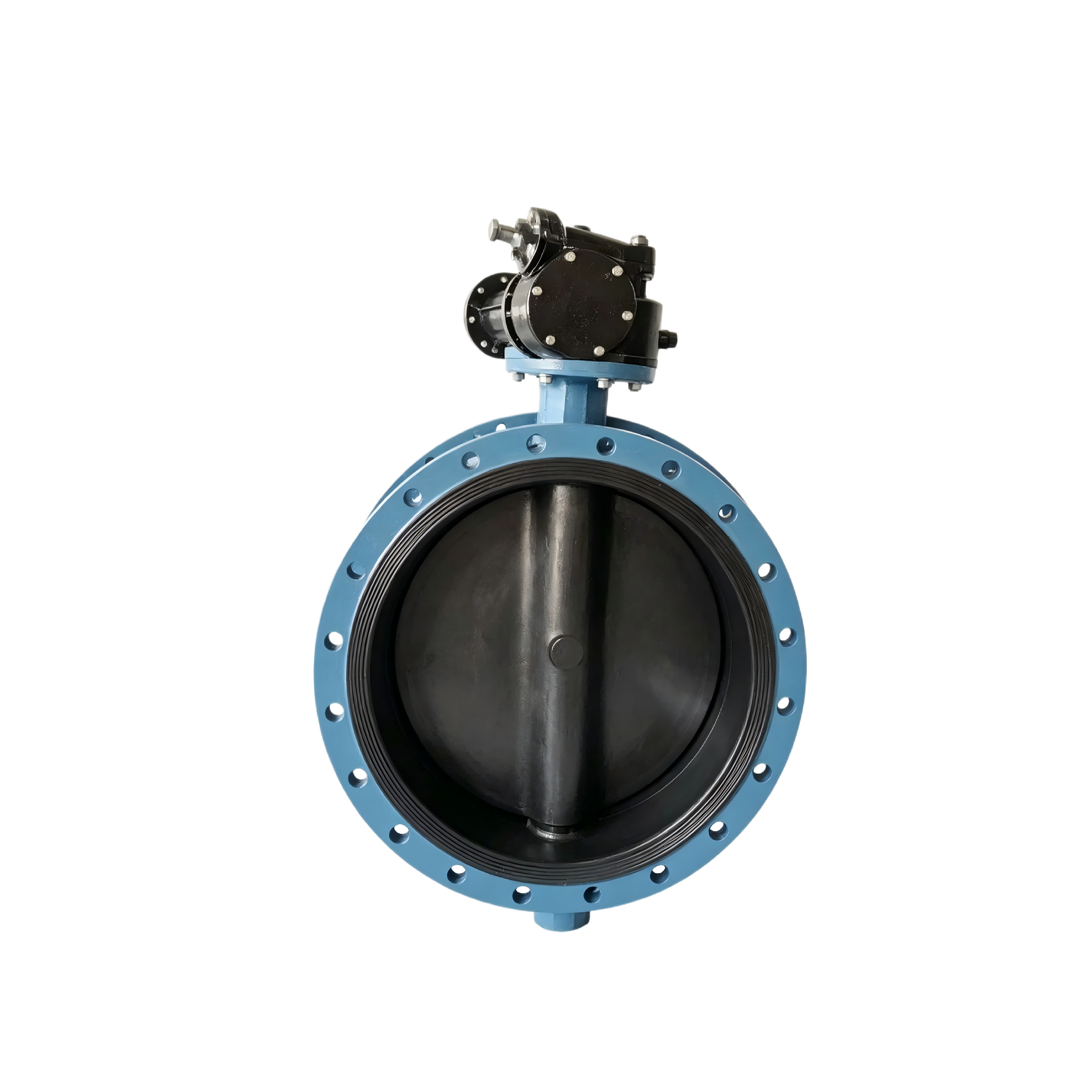

Full Rubber Lined Flanged Butterfly Valve 304 Disc

Product Overview The Full Rubber Lined Flanged Butterfly Valve 304 Disc manufactured by Zhewu is a high‑performance Butterfly Valve with flanged connection. This heavy‑duty Industrial Butterfly Valve can also be supplied as an ANSI Butterfly Valve or Wafer Butterfly Valve to satisfy different installation and standard requirements. This cast‑steel rubber‑lined flanged butterfly valve is equipped with 304 stainless‑steel disc for excellent corrosion‑resistant performance. The rubber‑lined valve‑body ensures dependable sealing effect. It is suitable for fluid control of medium‑high pressure and weakly‑corrosive media, widely used in petroleum, chemical, food‑processing and other industrial sectors. Material Specification Table Valve Body HT200 / WCB / CF8, etc. Lining EPDM Disc 304 Bolt A3 Nut A3 Valve Stem 416 Worm Gear QT450 Handwheel HT200 Available Nominal Diameter Sizes DN40 DN50 DN65 DN80 DN100 DN125 DN150 DN200 DN250 DN300 DN350 DN400 DN450 DN500 DN600…
