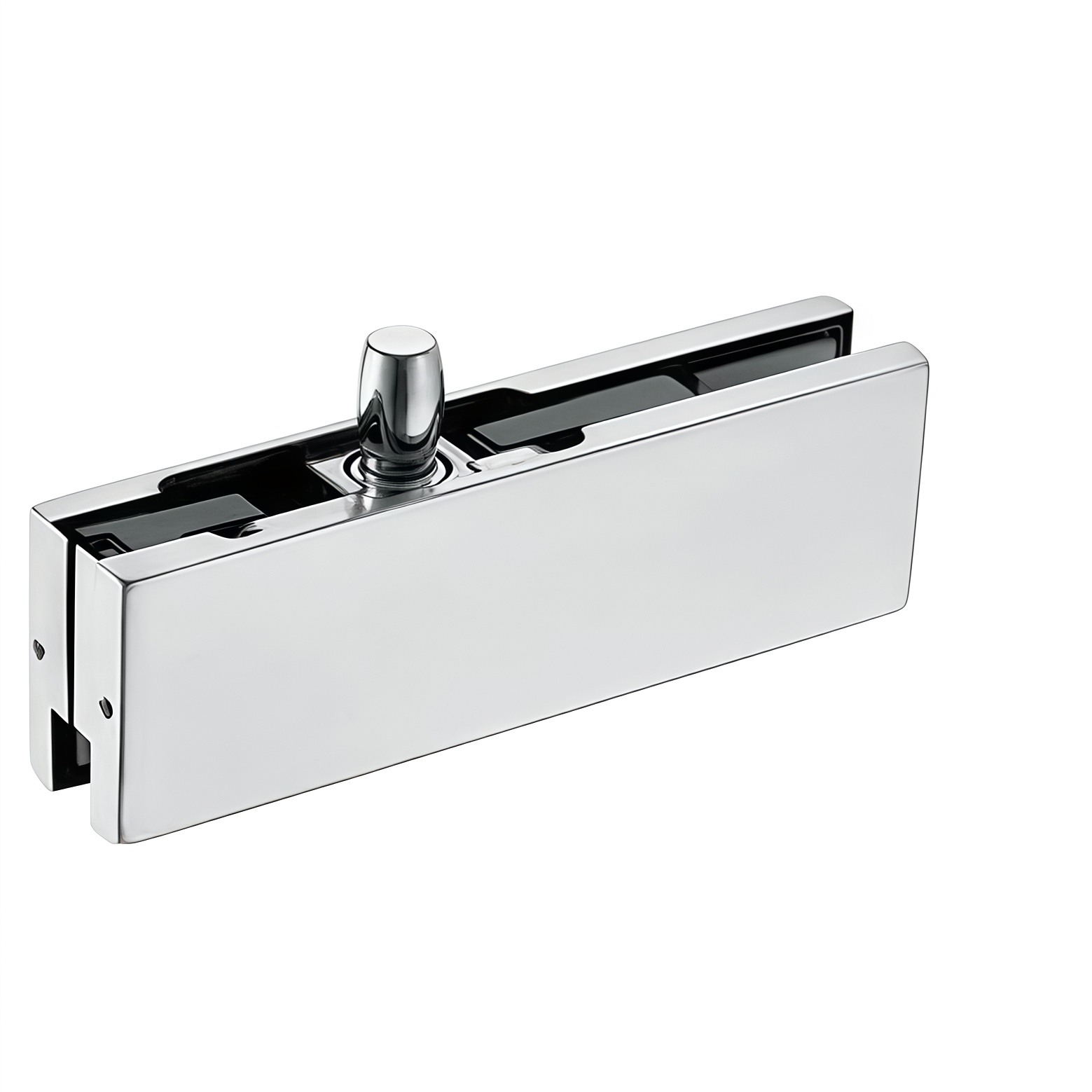

Transom Glass Door Patch Clamp with 15mm Pivot

The AZJ003 is a specialized Top Patch Fitting designed for the upper corners of frameless glass doors. Distinct from standard clamps, this model features a prominent φ15mm pivot interface, allowing for a robust and seamless connection with top pivot systems or transom closers in high-traffic commercial environments. Manufactured with precision, the AZJ003 boasts a sleek 163mm x 51mm profile that integrates perfectly with modern architectural designs. The cover plate is finished in Mirror Polished Stainless Steel, offering superior corrosion resistance and a premium reflective aesthetic, making it an ideal choice for hotels, offices, and shopping mall entrances. Technical Specifications Parameter Specification Model Number AZJ003 Product Type Top Patch Fitting (Upper Pivot Clamp) Dimensions 163mm (L) x 51mm (H) x 31mm (T) Pivot Interface φ15mm Pivot Connector Glass Thickness 10mm - 12mm Toughened Glass Material Reinforced Alloy Body + Stainless Steel Cover Install…
