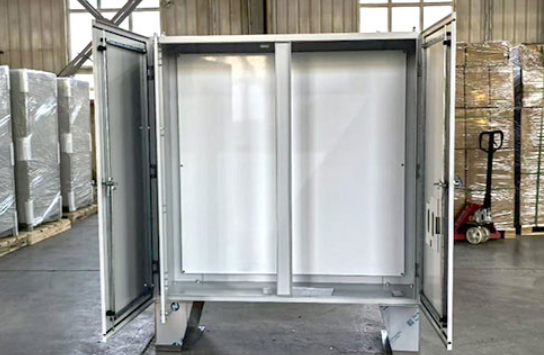

Large Capacity Waterproof Distribution Cabinet

The Large Capacity Waterproof Distribution Cabinet delivers reliable, high-current power distribution in the harshest outdoor or wash-down environments. Fabricated from 2.5 mm 304 or 316L stainless steel and sealed to IP66 / NEMA 4X, the cabinet withstands driving rain, dust, oil and corrosive chemicals. Its one-piece welded shell and continuous silicone gasket eliminate leakage points, while a sloped roof and integrated drainage channel prevent standing water. Inside, a fully welded copper bus system rated up to 4,000 A and 65 kA/1 s short-circuit withstand supports high-density breaker configurations. Symmetrical 25 mm-pitch mounting rails accept molded-case breakers, surge arresters and smart meters, while removable gland plates on top, bottom and sides allow oversized armored cables up to 630 mm², cutting installation time by 30 %.     Key advantages include: • Weather immunity—IP66 rating and UV-stable powder coat withstand –40 °C to +70 °C and 1,200 h salt-spray.• Thermal mana…
