Electro-hydraulic servo valve hydraulic valve

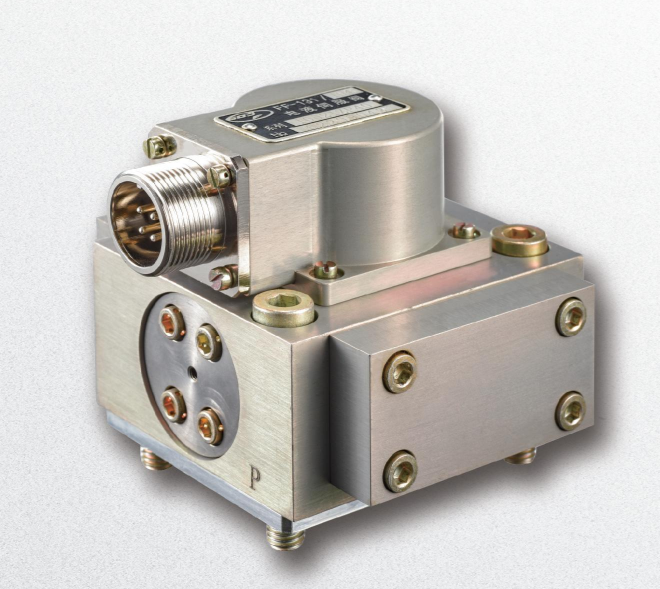

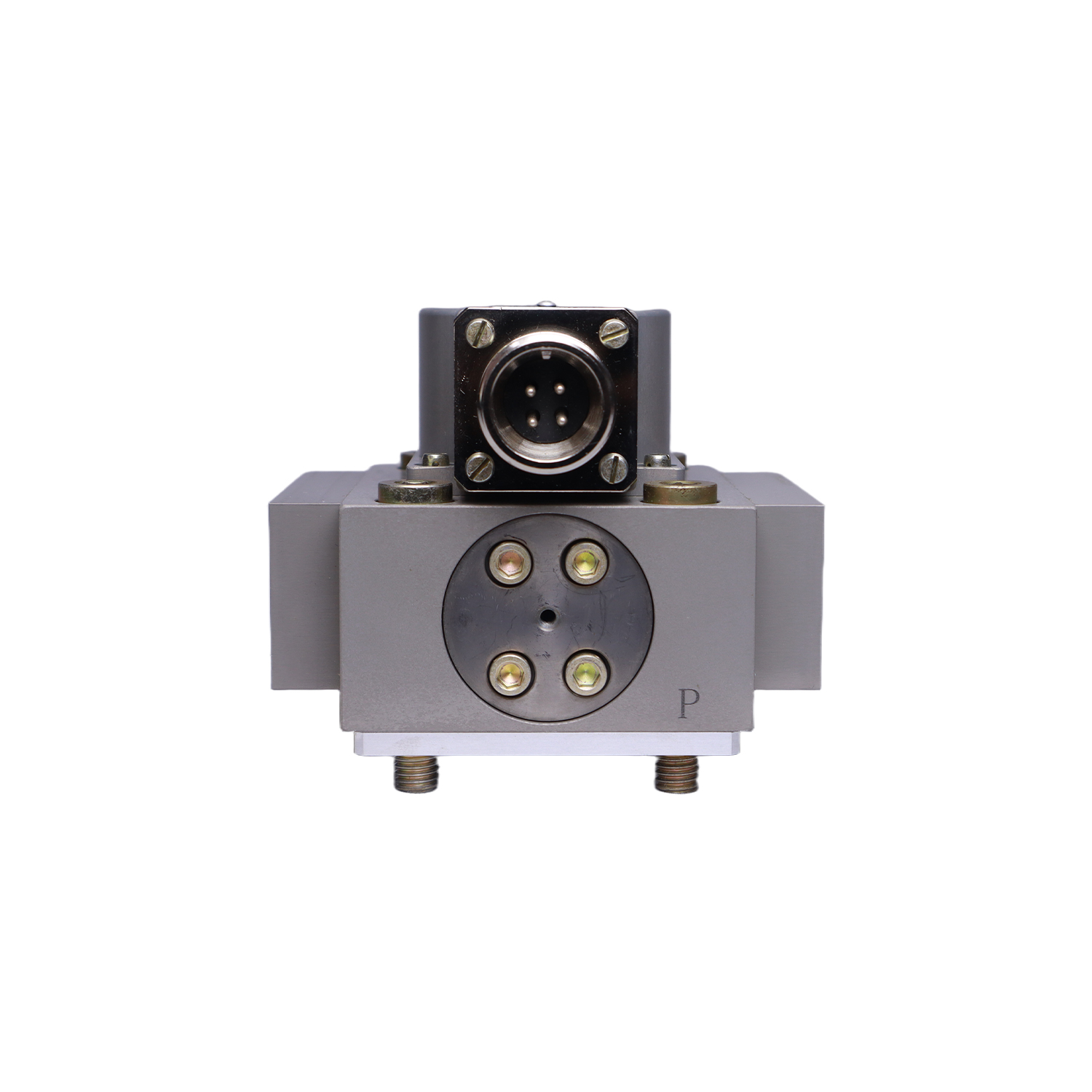

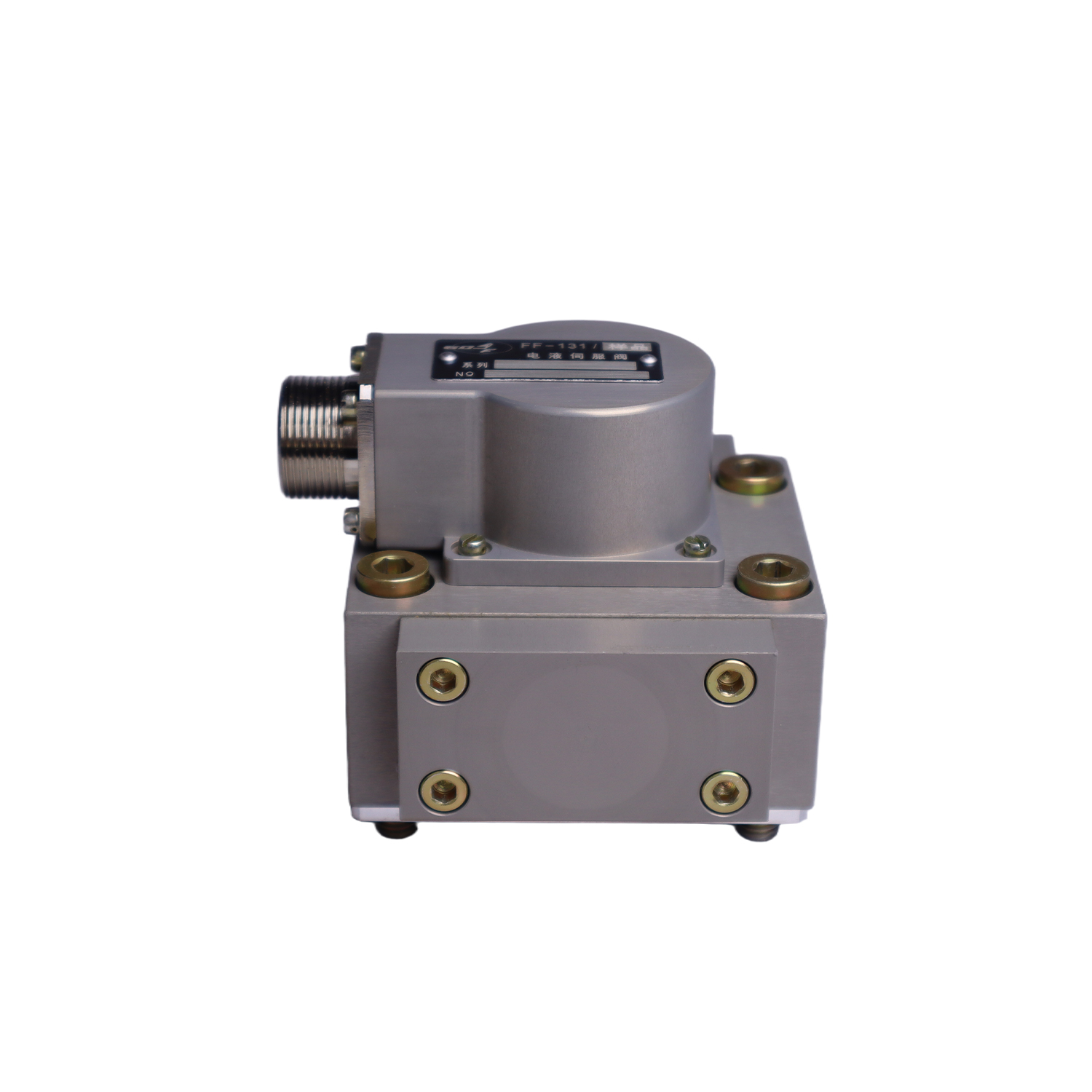

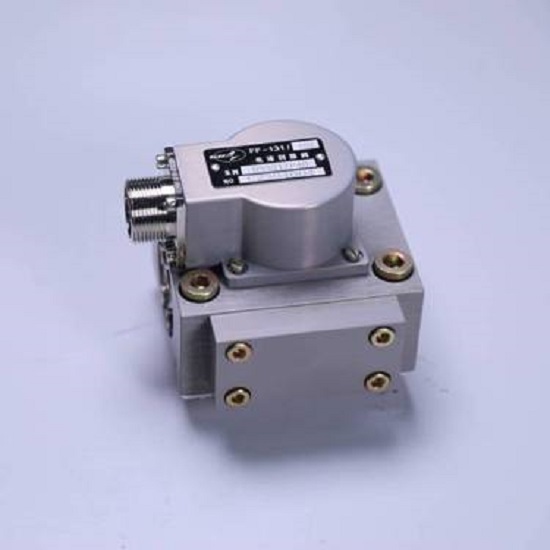

The FF-131 series electro-hydraulic servo valve is a force feedback two-stage dual nozzle baffle high flow servo valve, with a flow range of 6.5L/min to 100L/min under a pressure difference of 21MPa. The standard product of this series of servo valves adopts an aluminum alloy shell, which is lightweight. The product has a mechanical zero adjustment structure on the outside, which facilitates users to adjust according to their actual needs. The installation direction of product plugs and sockets can be selected according to needs. The product has the advantages of fast dynamic response, good linearity, zero drift, stable working performance, high reliability, long service life, small internal leakage, and low power consumption. The product is suitable for non-standard equipment, testing equipment, power industry, etc.   Applications: Electro hydraulic servo valve is a key component in electro-hydraulic servo control. It is a hydraulic control valve that receives analog el…
