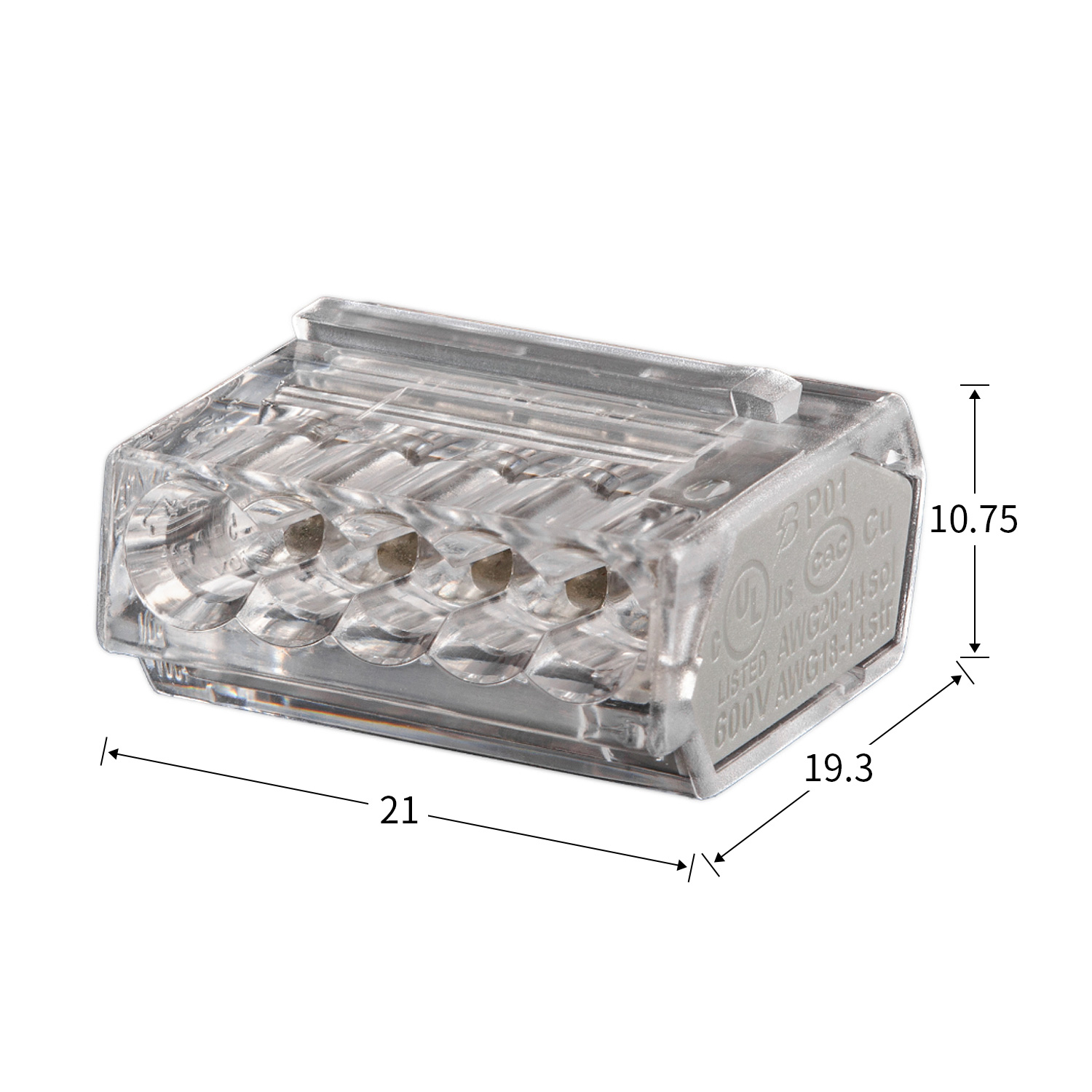

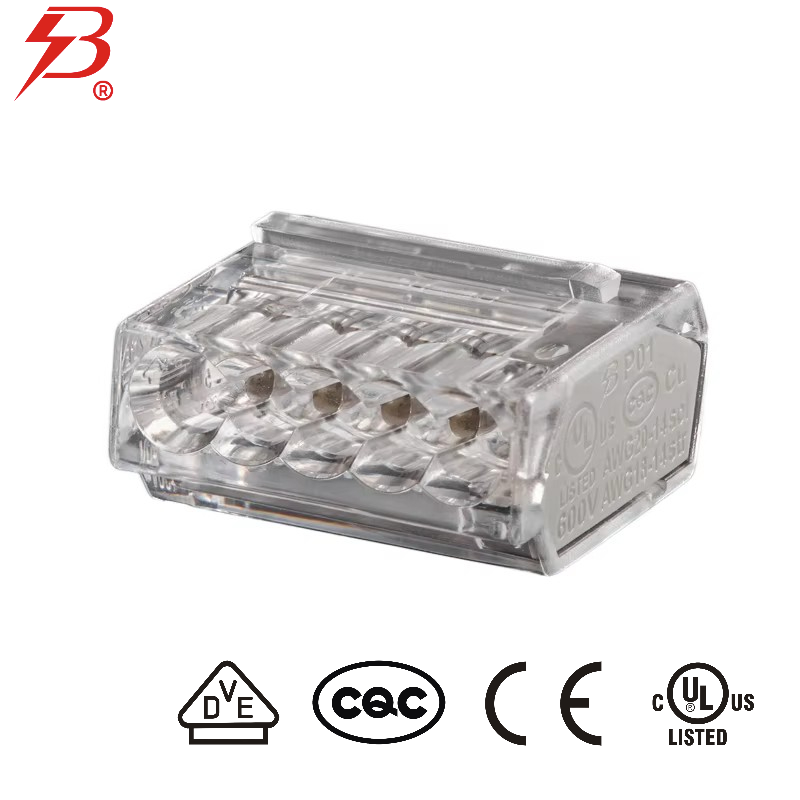

5-Conductor Compact Splicing Connector

The 5-Conductor Compact Splicing Connector (P01 Series) is a high-performance push wire connector designed for industrial applications, offering quick, tool-free installation in tight spaces. This 5P splice connector features corrosion-resistant materials and insulated housing for safe, durable connections in harsh environments. As a quick connector, it simplifies control panel wiring, machinery setups, and power distribution with secure push-in technology. The compact 5-conductor push in connector supports multiple wire gauges, making it ideal for automotive, energy, and telecom projects requiring reliable multi-wire junctions.   Item No. P01-52 Electrical Data   IEC/EN UL Rated Voltage (V) 450 600 Rated Current (A) 24 - Ambient Temperature Polycarbonate T110 105℃ Connection Data   IEC/EN UL Cross Section Solid conductor 0.5-2.5mm² AWG 14-20 Stranded conductor 1.0-2.5mm²  (7 strands included) AWG 14-18 Strip length (mm) 13 Means of connection push i…
