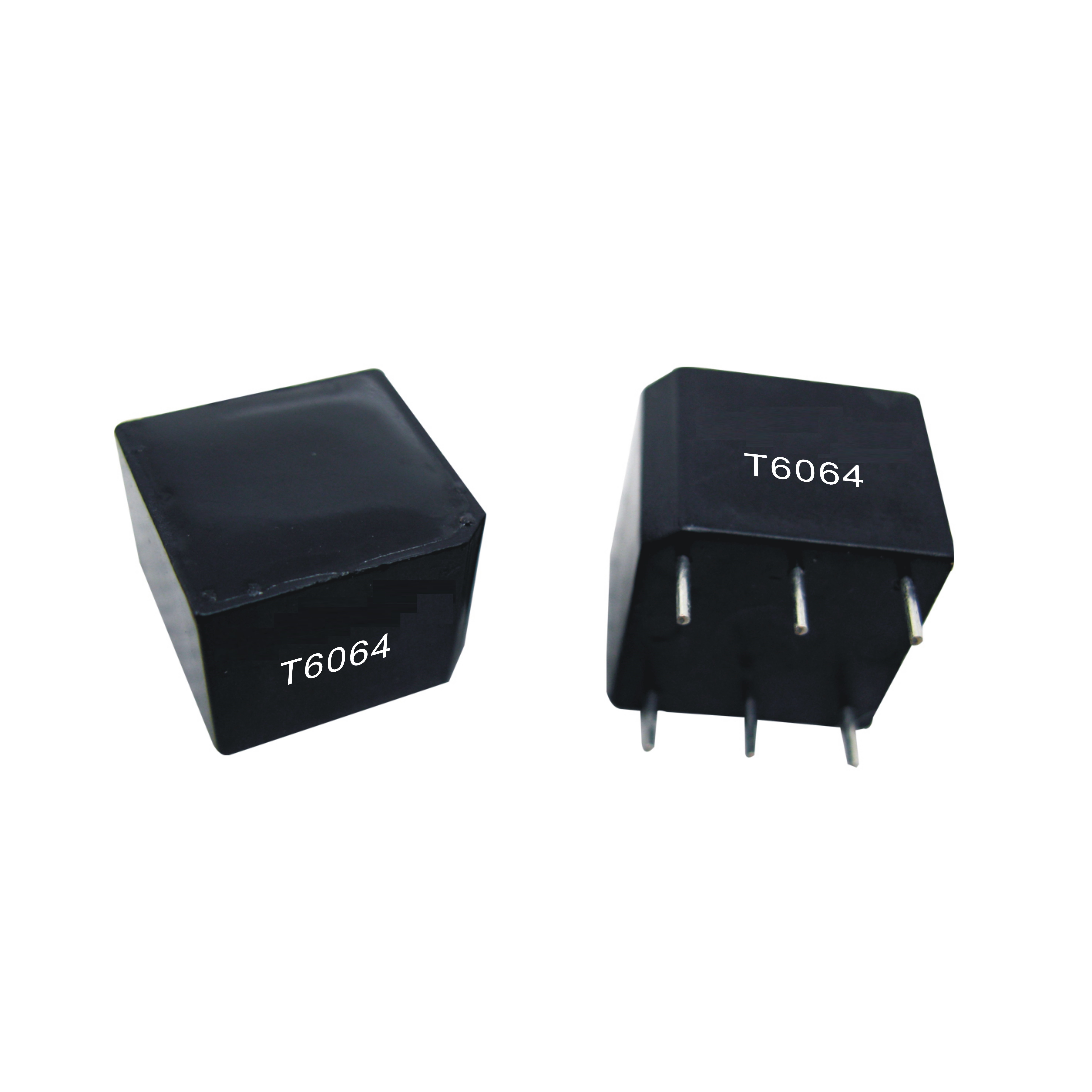

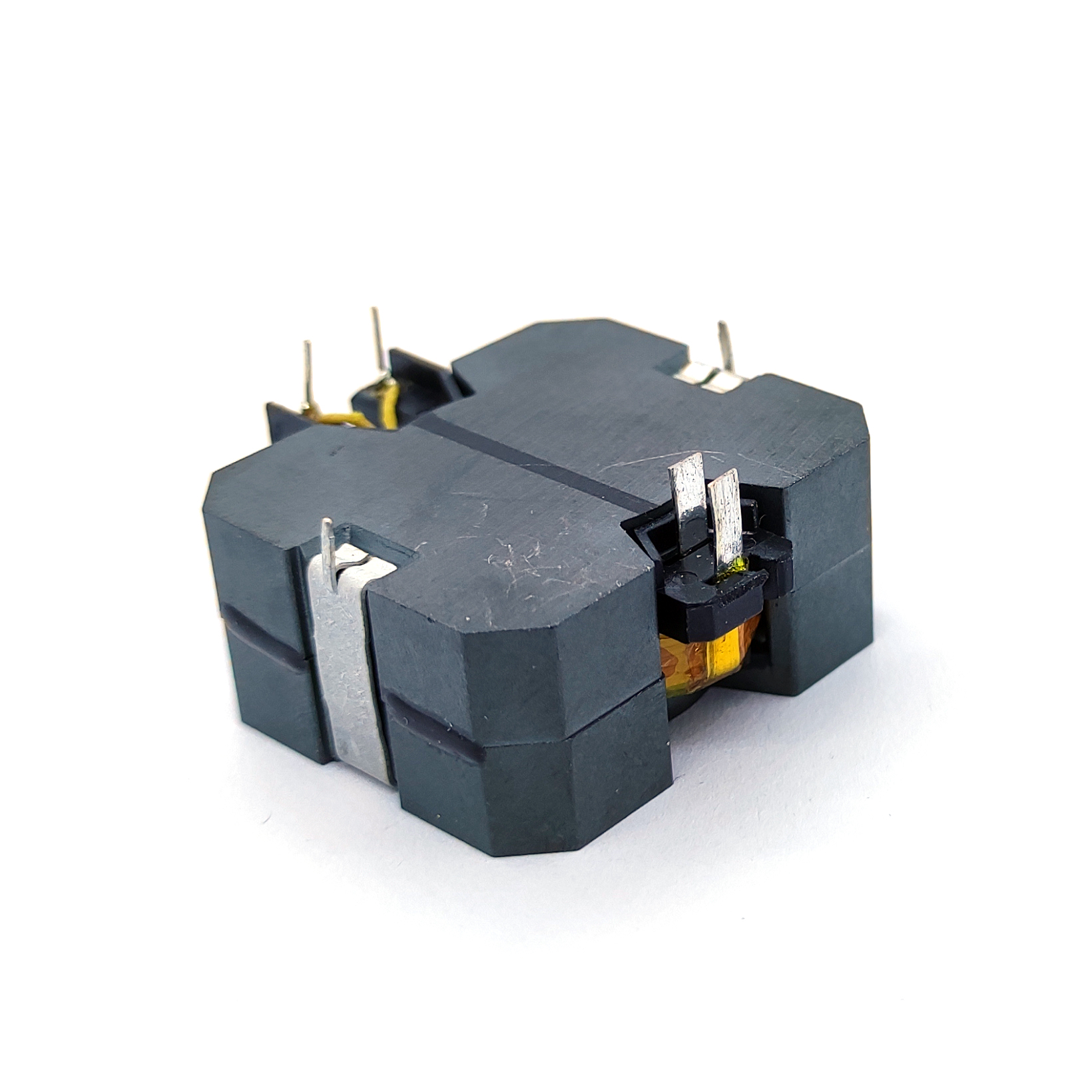

PCB Mount Pulse Transformer

What is PCB Transformer Key Features Engineered for broadband PLC systems, this PCB-mount pulse transformer delivers precision signal isolation with a 1:1:1 turns ratio. Featuring ultra-low leakage inductance (25μH max) and minimal rise time (1.5μs), it ensures high-speed data integrity. Shielded construction minimizes EMI interference, while RoHS-compliant materials support sustainable designs. Optimized for synergy with EMC Filters and RF Inductors in noise-critical circuits.   Technical Specifications Turns Ratio: 1:1:1 (N1:N2:N3) Inductance: 0.8mH (+50%/-30%) @10kHz, 0.1V Leakage Inductance (Lk): ≤25μH @10kHz DCR: 0.4Ω ±20% (N1–N2–N3) Voltage-Time Area: 200V·μs min Working Voltage: 700V_RMS max Hi-Pot Isolation: 3200V_AC (windings) Operating Temp: -20°C to +85°C Power Dissipation: 0.7W Coupling Capacitance: ≤30pF @100kHz   Applications Power Converters: Isolated gate driving in IGBT/MOSFET circuits Sensor Interf…
