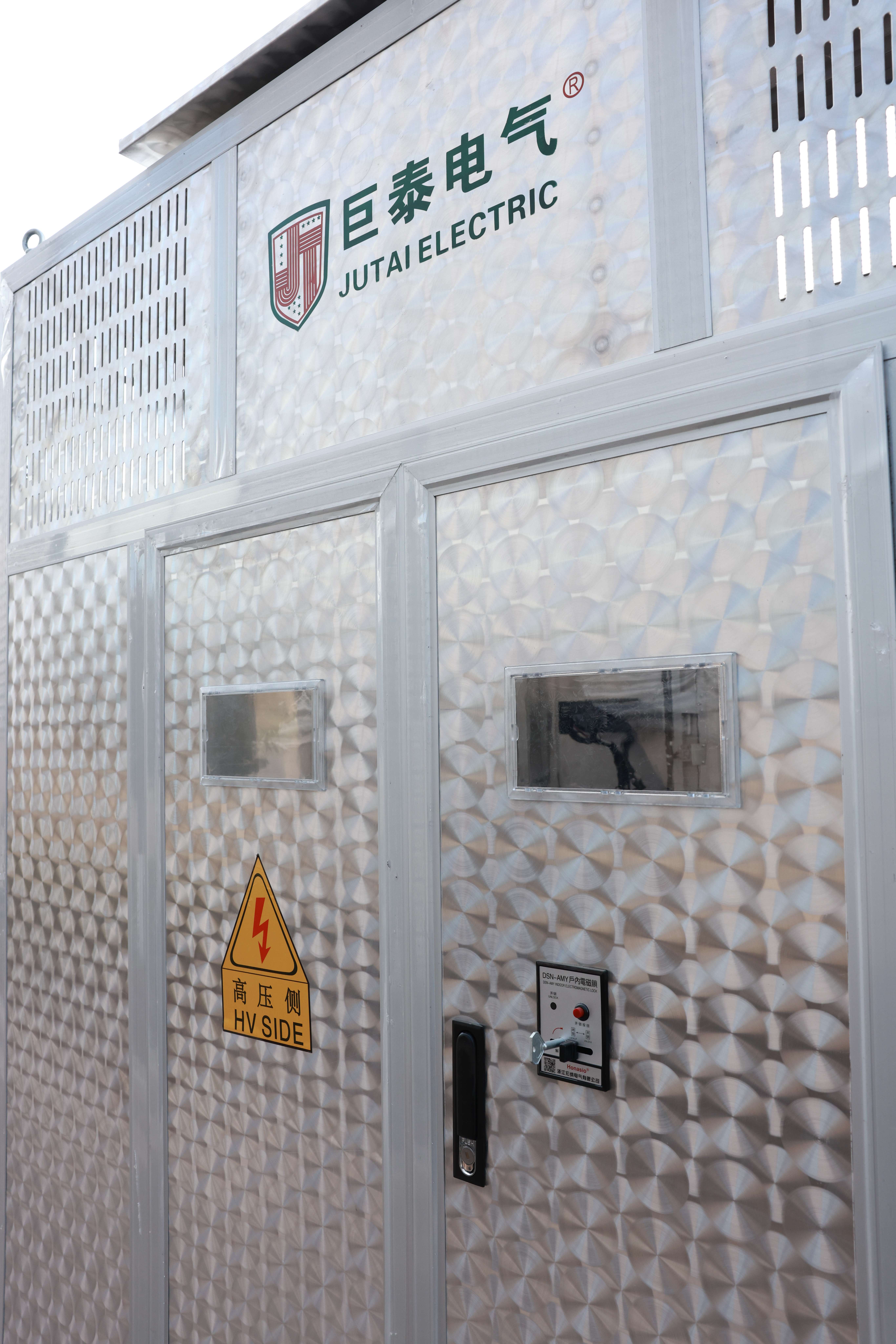

10kV SC(B)10-14 cast resin transformer

Dry-type Power Transformer with 10kV Cast Resin Insulation Product Overview: A dry-type transformer is a transformer that does not use liquid insulating media (such as transformer oil). Its insulation and cooling mainly rely on air or other non-liquid media. This type of transformer usually uses solid insulating materials such as epoxy resin, insulating cardboard, cable paper, etc. Structure of dry-type transformer 1. Core The core of a dry-type transformer is the magnetic circuit part, which consists of two parts: the core column and the iron yoke. The winding is mounted on the core column, and the iron yoke closes the entire magnetic circuit.Core structures are generally divided into two types: core type and shell type: ①　Core core: The iron yoke is against the top and bottom surfaces of the winding, but does not wrap around the sides of the winding. The core core has a simple structure, and the arrangement and insulation of the winding are also relatively easy. Therefore, my count…
